MP系列磁力驱动循环泵
◇概 述
MP系列磁力驱动循环泵采用无轴封设计，泵体完全密封,绝无泄漏，不会引起泵
体腐蚀及环境污染，是理想的腐蚀性液体输送泵。MP系列最大流量由每分钟5公升
到130公升，有软管好接口选择。泵体材料采用玻纤维增强聚丙烯及高铝陶瓷，大部
分的化学液体均可安全输送，泵体组件模块化，使维修保养极为容易。

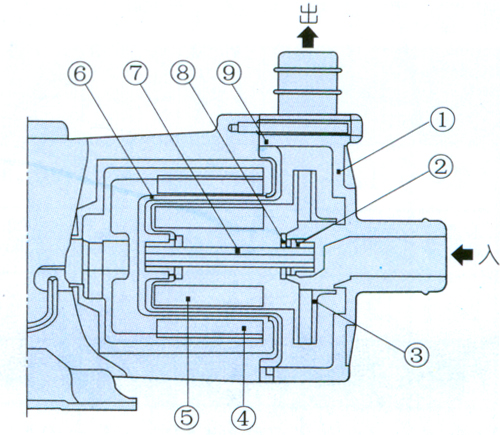

◇结 构 图
|
|
部件 |
材料 |
|
1 |
泵壳 |
玻璃纤维增强聚丙烯 |
|
2 |
轴承 |
填充聚四氟乙烯或高铝陶瓷 |
|
3 |
叶轮 |
玻璃纤维增强聚丙烯 |
|
4 |
主动磁钢 |
锶铁氟体 |
|
5 |
被动磁钢 |
锶铁氟体 |
|
6 |
隔离套 |
玻璃纤维增强聚丙烯 |
|
7 |
泵轴 |
高铝陶瓷 |
|
8 |
端环 |
高铝陶瓷 |
|
9 |
密封圈 |
氟橡胶/三元乙丙橡胶 |
◇性 能 参 数 表
|
型号 |
软管接口式 |
螺纹接口式 |
最大流量
(L/min) |
最高扬程
(m) |
标准输出量 |
比重 |
马达 |
|
入口
(mm) |
出口
(mm) |
入口
(mm) |
出口
(mm) |
流量
(L/min) |
扬程
(m) |
输出
(W) |
相 |
|
MP-6R |
14 |
14 |
- |
- |
8/9 |
1/1.4 |
2.8/5 |
0.8 |
<1.2 |
3 |
1 |
|
MP-6RZ |
14 |
14 |
- |
- |
5.5/6 |
2.1/2.7 |
3.2/4.5 |
0.8 |
<1.1 |
3 |
1 |
|
MP-10R |
14 |
14 |
- |
- |
11/12 |
1.5/2.1 |
5/8 |
1 |
<1.1 |
6 |
1 |
|
MP-10RN |
14 |
14 |
- |
- |
11/12 |
1.5/2.1 |
5/8 |
1 |
<1.1 |
6 |
1 |
|
MP-15R |
16 |
16 |
- |
- |
16/19 |
2.7/3.4 |
8/12 |
1.5 |
<1.3 |
10 |
1 |
|
MP-15RN |
16 |
16 |
- |
- |
16/19 |
2.7/3.4 |
8/12 |
1.5 |
<1.3 |
10 |
1 |
|
MP-15RM |
- |
- |
3/4 |
13 |
16/19 |
2.4/3.4 |
8/12 |
1.5 |
<1.3 |
10 |
1 |
|
MP-20R |
18 |
18 |
- |
- |
27/32 |
3.1/4.3 |
17/22 |
2 |
<1.2 |
20 |
1 |
|
NP-20RM |
- |
- |
3/4 |
16 |
27/32 |
3.1/4.3 |
17/22 |
2 |
<1.2 |
20 |
1 |
|
MP-20RX |
26 |
26 |
- |
- |
46/52 |
1.8/2.5 |
30/40 |
1 |
<1.3 |
20 |
1 |
|
MP-20RXN |
- |
- |
1 |
20 |
46/52 |
1.8/2.5 |
30/40 |
1 |
<1.3 |
20 |
1 |
|
MP-20RZ |
18 |
18 |
- |
- |
10/11 |
4.6/6.9 |
7/10 |
4 |
<1.1 |
20 |
1 |
|
MP-20RZM |
- |
- |
3/4 |
13 |
10/11 |
4.6/6.9 |
7/10 |
4 |
<1.1 |
20 |
1 |
|
MP-30R |
20 |
20 |
- |
- |
33/38 |
3.8/5.4 |
16/25 |
2.5 |
<1.3 |
451 |
1 |
|
MP-30RM |
- |
- |
3/4 |
16 |
33/38 |
3.8/5.4 |
16/25 |
2.5 |
<1.3 |
45 |
1 |
|
MP-30RX |
26 |
26 |
- |
- |
62/72 |
2.9/4.1 |
32/46 |
2 |
<1.1 |
45 |
1 |
|
MP-30RXM |
- |
- |
1 |
20 |
62/72 |
2.9/4.1 |
32/46 |
2 |
<1.1 |
45 |
1 |
|
MP-30RZ |
18 |
18 |
- |
- |
15/17 |
8/11 |
10/14 |
6 |
<1.1 |
45 |
1 |
|
MP-30RZM |
- |
- |
3/4 |
13 |
15/17 |
8/11 |
10/14 |
6 |
<1.1 |
45 |
1 |
|
MP-40R |
20 |
20 |
- |
- |
45/52 |
4.6/6.5 |
22/34 |
4 |
<1.1 |
65 |
1 |
|
MP-40RM |
- |
- |
3/4 |
16 |
45/52 |
4.6/6.5 |
22/34 |
4 |
<1.1 |
65 |
1 |
|
MP-40RX |
26 |
26 |
- |
- |
78/85 |
3.3/4.7 |
47/65 |
2 |
<1.1 |
65 |
1 |
|
MP-40RXM |
- |
- |
1 |
20 |
78/85 |
3.3/4.7 |
47/65 |
2 |
<1.1 |
65 |
1 |
|
MP-55R |
26 |
26 |
- |
- |
60/70 |
5.6/8.2 |
30/45 |
4 |
<1.1 |
90 |
1or3 |
|
MP-55RM |
- |
- |
1 |
20 |
60/70 |
5.6/8.2 |
30/45 |
4 |
<1.2 |
90 |
1or3 |
|
MP-55RZ |
26 |
26 |
- |
- |
25/28 |
10/14 |
15/22 |
8 |
<1.2 |
90 |
1or3 |
|
MP-55RZM |
- |
- |
1 |
20 |
25/28 |
10/14 |
15/22 |
8 |
<1.1 |
90 |
1or3 |
|
MP-70R |
26 |
26 |
- |
- |
86/97 |
6.7/9.7 |
50/72 |
4 |
<1.1 |
150/180 |
1or3 |
|
MP-70RM |
- |
- |
1 |
20 |
86/97 |
6.7/9.7 |
50/72 |
4 |
<1.1 |
150/180 |
1or3 |
|
MP-100R |
26 |
26 |
- |
- |
120/130 |
8.6/11.6 |
60/70 |
7/9 |
<1.3 |
250/265 |
1or3 |
|
MP-100RM |
- |
- |
1 |
20 |
120/130 |
8.6/11.6 |
60/70 |
7/9 |
<1.3 |
250/265 |
1or3 |
|
MP-100RX |
- |
- |
11/4 |
32 |
170 |
9.0 |
100 |
5.0 |
<1.3 |
250 |
1or3 |
|
MP-120R |
- |
- |
11/2 |
36 |
220 |
10.5 |
140 |
6.0 |
<1.3 |
370 |
1or3 |
|
MP-120RT |
- |
- |
21/4 |
48 |
220 |
10.5 |
140 |
6.0 |
<1.3 |
370 |
1or3 |

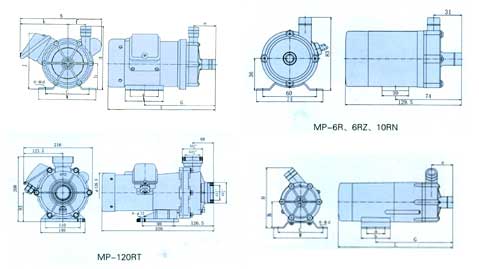

◇外 形 及 安 装 尺 寸
|
型号 |
a |
b |
c |
d |
e |
f |
G |
h |
H |
W |
L |
|
MP-15R |
49 |
63 |
68 |
6 |
38 |
23 |
121 |
45 |
100 |
82 |
196.5 |
|
MP-15RN |
49 |
63 |
68 |
6 |
39.5 |
24.5 |
117.5 |
46 |
100 |
82 |
180 |
|
MP-20R |
30 |
50 |
68 |
5.5 |
38.5 |
28.5 |
131.5 |
56 |
116 |
85 |
209 |
|
MP-20RZ |
30 |
50 |
68 |
5.5 |
40 |
40 |
134 |
56 |
126 |
85 |
212 |
|
MP-20RM |
30 |
50 |
68 |
5.5 |
34 |
28.5 |
127 |
56 |
117 |
85 |
204.5 |
|
MP-30R |
40 |
64 |
100 |
9 |
48 |
30 |
166.5 |
60 |
130 |
120 |
249.5 |
|
MP-30RZ |
40 |
64 |
100 |
9 |
40 |
40 |
151 |
60 |
130 |
120 |
234 |
|
MP-30RM |
40 |
64 |
100 |
9 |
48 |
30 |
166.5 |
60 |
130 |
120 |
249.5 |
|
型号 |
a |
b |
c |
d |
e |
f |
G |
h |
H |
W |
L |
B |
J |
k |
|
MP-40R |
40 |
64 |
100 |
9 |
48 |
30 |
167.5 |
60 |
130 |
120 |
274 |
/ |
118 |
60 |
|
MP-40RM |
40 |
64 |
100 |
9 |
48 |
30 |
167.5 |
60 |
130 |
120 |
274 |
/ |
118 |
60 |
|
MP-55R |
40 |
64 |
100 |
9 |
56.5 |
43 |
198.5 |
65.5 |
161 |
120 |
275 |
/ |
140 |
54 |
|
MP-55RZ |
40 |
64 |
100 |
9 |
56.5 |
43 |
198.5 |
65.5 |
161 |
120 |
275 |
/ |
140 |
54 |
|
MP-70R |
70 |
96 |
108 |
9.5 |
55.75 |
44 |
177 |
66 |
161 |
142 |
267 |
202 |
142 |
118 |
|
MP-70RM |
70 |
96 |
108 |
9.5 |
52.75 |
44 |
174 |
66 |
156 |
142 |
264 |
202 |
142 |
118 |
|
MP-100R |
70 |
100 |
110 |
9 |
66 |
44 |
195.5 |
74 |
174 |
156 |
322 |
202 |
150 |
118 |
|
MP-100RM |
70 |
100 |
110 |
9 |
66 |
44 |
195.5 |
74 |
174 |
156 |
322 |
202 |
150 |
118 |
|
MP-100RX |
70 |
100 |
110 |
9 |
63 |
40 |
196.5 |
74 |
174 |
156 |
323 |
205 |
167 |
124 |
|
MP-120R |
98 |
130 |
110 |
9 |
80 |
51 |
184.5 |
93 |
208 |
140 |
359 |
216 |
187 |
123 |
|
型号 |
a |
b |
c |
d |
e |
G |
h |
H |
W |
L |
|
MP-20RX |
30 |
50 |
68 |
5.5 |
46.5 |
143 |
56 |
130 |
85 |
220.5 |
|
MP-30RX |
40 |
64 |
100 |
9 |
48 |
169.5 |
60 |
138 |
120 |
252.5 |
|
MP-40RX |
40 |
64 |
100 |
9 |
48 |
170.5 |
60 |
138 |
120 |
277 | |
